Detailed Product Description

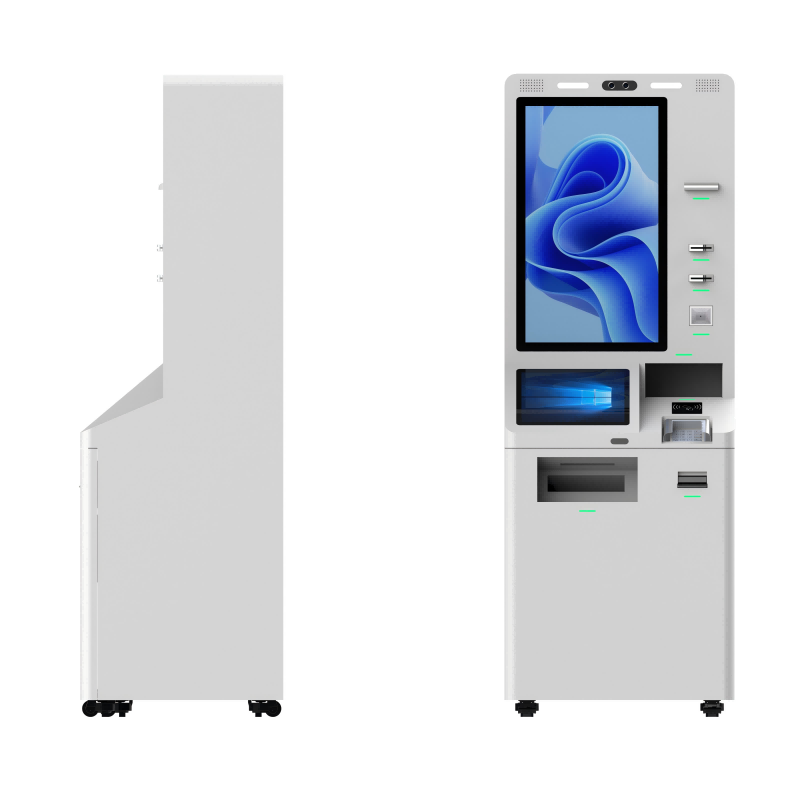

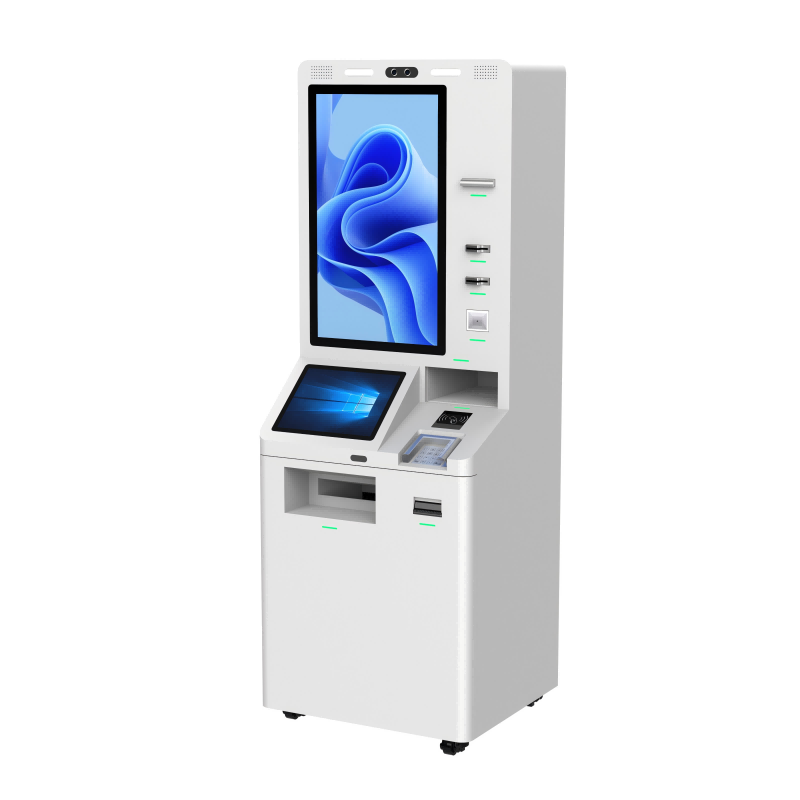

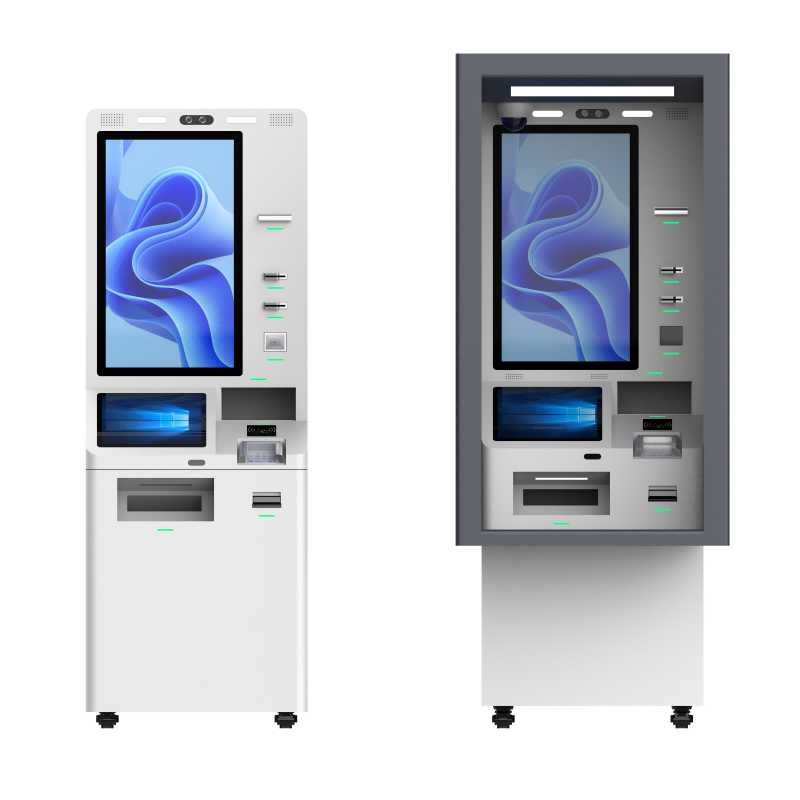

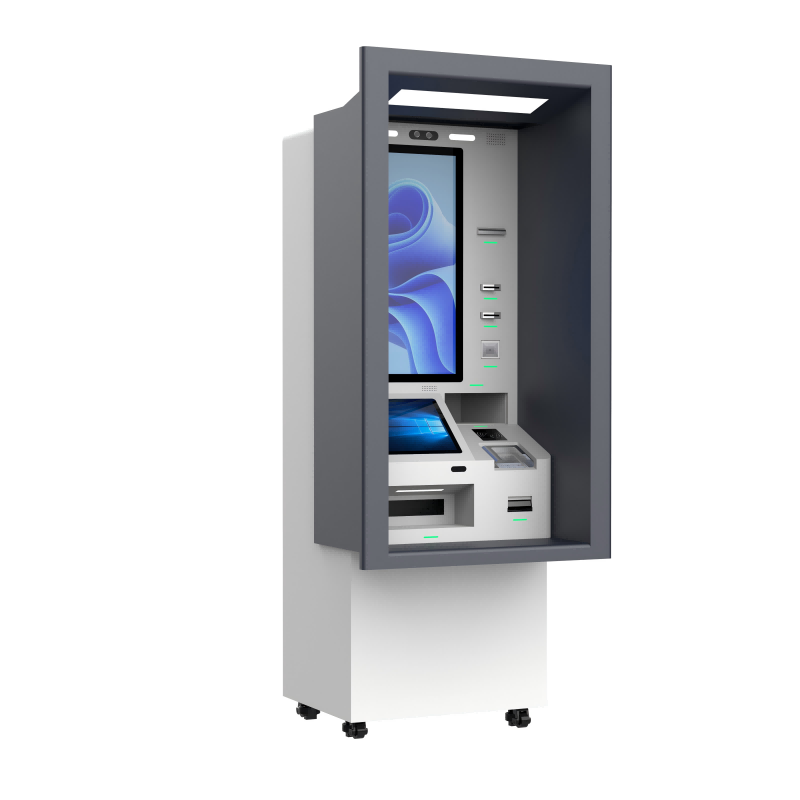

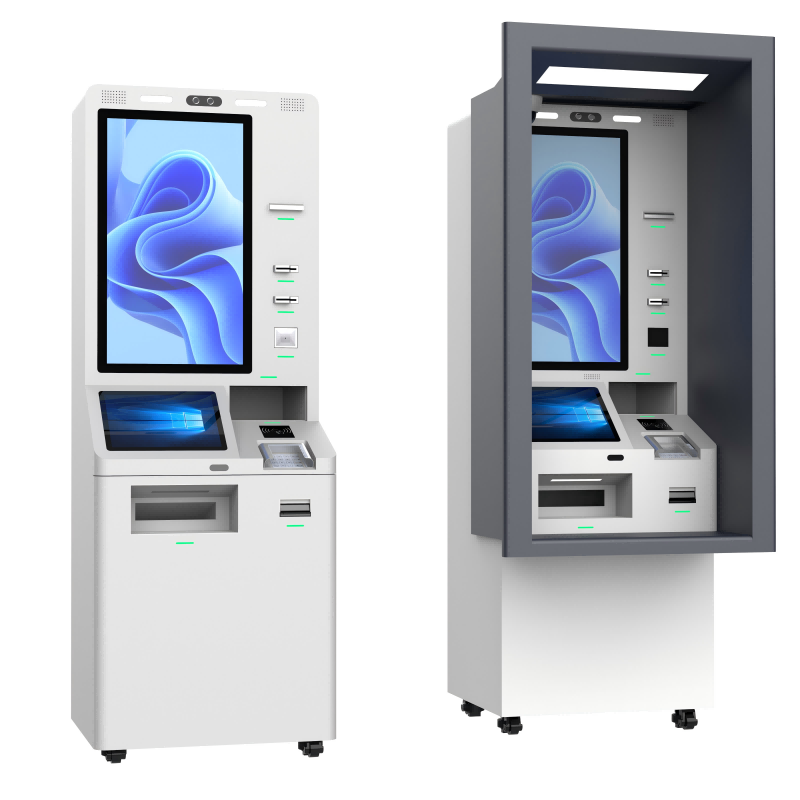

The ATM Kiosk is a multifunctional self-service device that integrates a cash receiver and a thermal printer, designed to provide automated ticketing and payment services. Users can select and purchase tickets, tickets or other ticketing services through an intuitive touch screen interface, supporting cash payment and change functions. The thermal printer can quickly print out clear tickets to ensure that users obtain accurate ticket information. This self-service ticket machine not only significantly reduces customer waiting time and improves service efficiency, but also provides users with a convenient self-service ticket purchasing experience. It is suitable for transportation hubs, tourist attractions, cinemas and other places.
Specification
| Components | Details |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
| RAM | 2GB /4 GB / 8GB |
| HDD | 500G |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
| PC Power Supply | HUNTKEY/Great Wall |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 |
| angle | horizontal 100°above;Vertical 80°above |
| Contrast | 1000:1 |
| Backlight tube life | more than 40,000hours |
| Max. resolution | 1280×1024 |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
| Power Voltage | DC 24V±5% |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N |
| Key trip | >2.5mm |
| Protection level | ip65 |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way |
| Escrow | One banknote |
| Capacity | 1000 notes Max |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins |
| Accepting Speed | 2 Coins/Sec |
| Supply Voltage | 10V-16V DC |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing |
| Paper width | 80mm |
| Printing speed | 150mm/s |
| Data buffer | 4KB |
| Interface | RS232 ,USB |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va |
| Max time for supplying a single PC | 3~20minutes (for single PC) |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
| Operation System | Windows 7 or Windows XP operation system without license |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
| Packing | Security Packing method with bubble foam and wooden case |
Features
1. Face recognition and ID card comparison
2. 27-inch display screen
3. 19-inch capacitive touch screen
4. 3-in-1 electric card reader
5.ID Card Reader
6.QR Code Reader
7.RFID Card Reader
8.Passport Scanner
9.Metal Password Keyboard
10.Thermal printer
11.Infared Sensor
12.A4 Printer
Benefit
1. Improve service efficiency: Provide 24/7 service, so that customers can handle various banking services by themselves during non-working hours, reducing the waiting time of customers at the counter.
2. Versatility: Integrate multiple financial service functions, such as account inquiry, transfer, deposit and withdrawal, bill payment and credit card management, etc., to provide one-stop self-service to meet the diverse needs of customers.
3. Enhanced security: Through the integration of RFID card readers, biometric technology, etc., provide multi-level security verification to ensure the security of transactions and the confidentiality of user information.
4. Easy operation: Equipped with an intuitive touch screen interface and designed user-friendly operation processes, customers can easily and quickly complete various transactions, suitable for users of different ages and backgrounds.
5. Reduce operating costs: Reduce dependence on manual counter services, reduce the operating costs of banks, and reduce the workload of counter staff.
6. Data collection and analysis: Able to collect customer usage data, help banks analyze customer behavior and needs, and provide data support for optimizing services and formulating market strategies.
7. Improve customer satisfaction: By providing convenient, fast and secure self-service, it enhances the overall banking experience of customers and improves customer satisfaction and loyalty.
8. Flexibility and adaptability: It can update or add functions according to changes and needs of banking business, maintain the timeliness and applicability of services, and adapt to changes in market and customer needs.
FAQS
1. What are the main functions of the visitor machine?
- The visitor machine is mainly used for visitor registration, information query, visitor card issuance, access rights management and multimedia information display.
2. Does the visitor machine support multi-language function?
- Yes, most visitor machines support multi-language function to provide convenient services for visitors with different language backgrounds.
3. Can the visitor machine be integrated with other devices?
- Yes, the visitor machine can integrate printers, RFID readers, cameras and other devices to expand functions, such as printing visitor cards, recording visitor information, etc.
4. How to update and manage the content on the visitor machine?
- The content of the visitor machine is usually updated remotely through the background management system, and the display content can be changed and managed at any time.
5. What is the process of visitor registration?
- Visitors usually enter basic information on the touch screen, such as name, purpose of visit, etc., and then the system will generate a visitor card or QR code for access
