Detailed Product Description
Outdoor Payment Kiosk Description

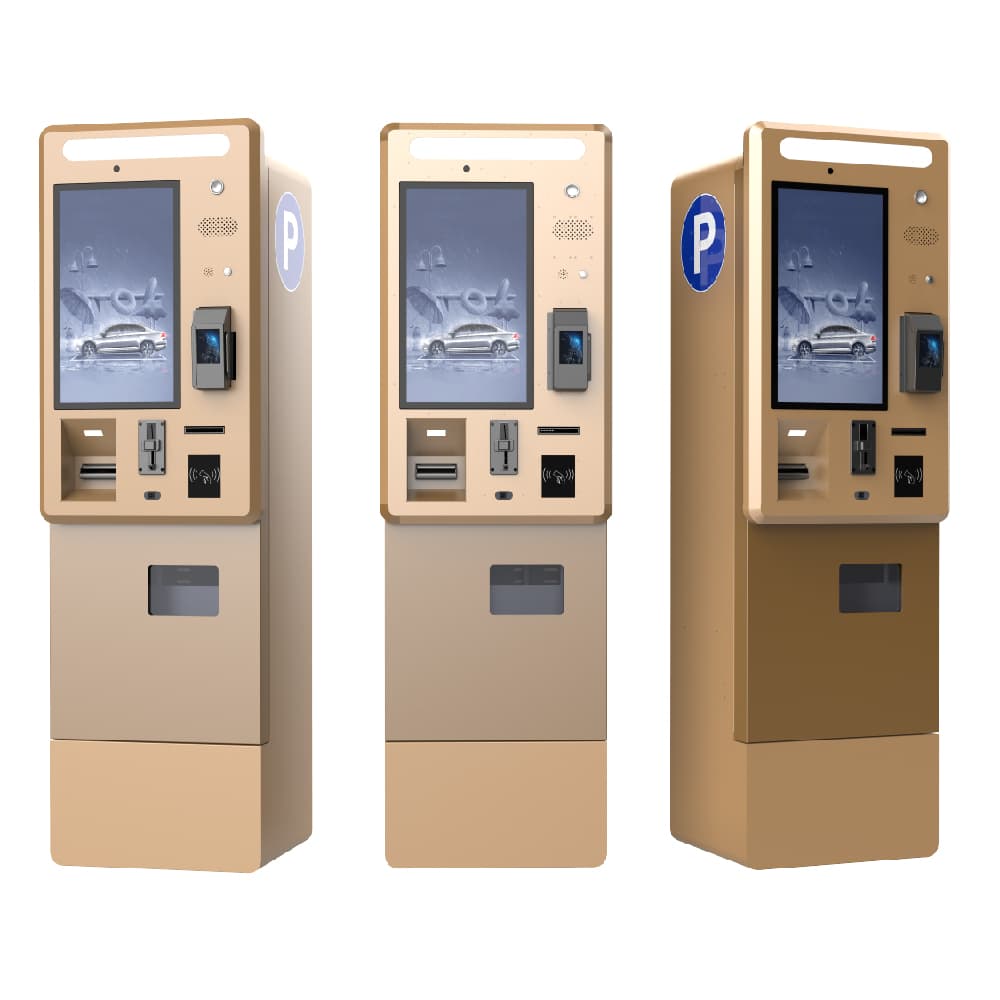

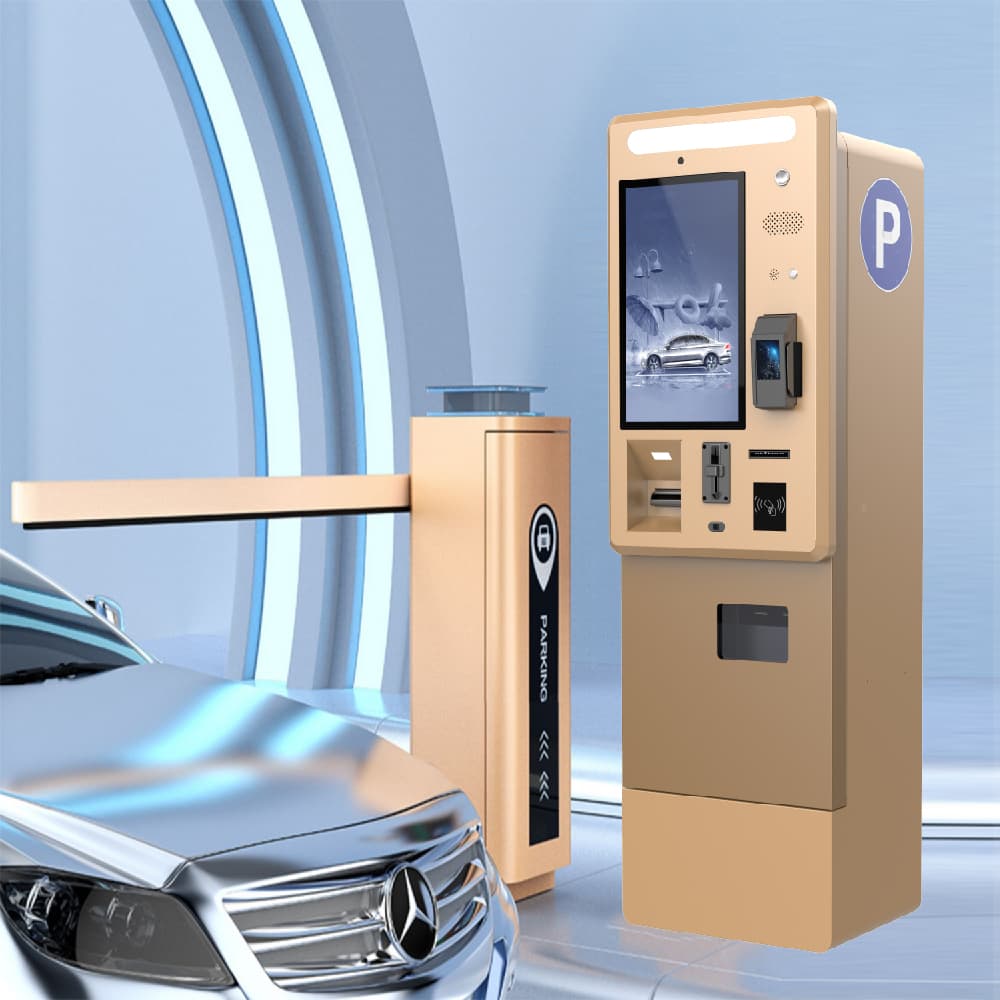

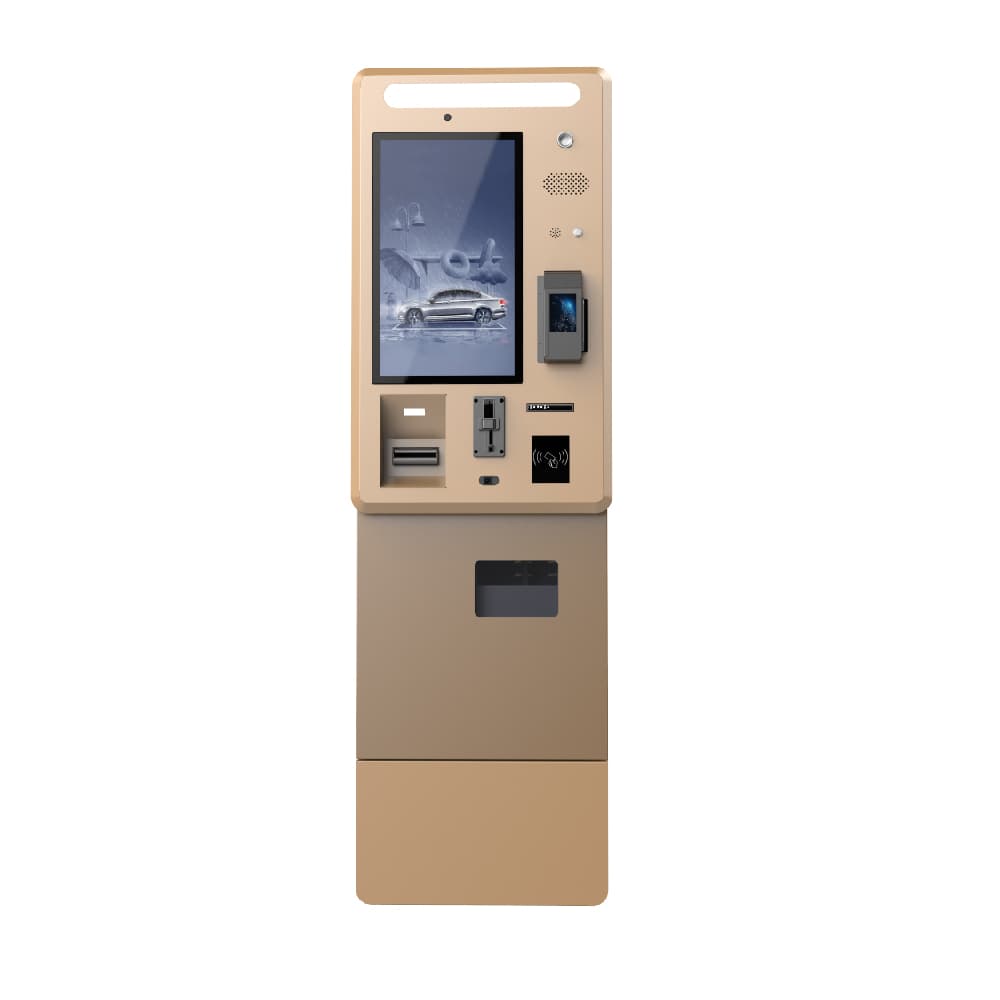

The 21.5 Inch Outdoor Payment Kiosk with NFC and QR Code Payments is a robust and weatherproof solution tailored for modern parking lots. Featuring a large and responsive touch screen, it supports multiple payment methods including contactless cards and mobile QR payments. Built for durability, it withstands rain, dust, and temperature changes, ensuring reliable performance in outdoor environments. With customizable branding, fast transaction speed, and intuitive UI, this kiosk enhances user convenience and boosts operational efficiency.
Detailed informations of 21.5 Inch Outdoor Payment Kiosk
| Display | LCD Monitor | 21.5-inch TFT LCD, high brightness, suitable for outdoor visibility | Optional sizes available |
| Touchscreen | Touch Panel | Capacitive or Infrared, multi-touch, anti-scratch, high precision | Single or multi-touch |
| Processor | PC System | Industrial-grade motherboard with Intel i3/i5/i7 CPU | Customizable CPU options |
| Memory | RAM | 4GB / 8GB | Upgradable |
| Storage | HDD/SSD | 500GB HDD or optional SSD | SSD preferred for speed and reliability |
| NFC Reader | Contactless Reader | Supports Mifare, EMV, ISO14443A/B | Compatible with mobile wallet systems |
| QR Scanner | Barcode Reader | 1D/2D QR code scanner for mobile payment | Fast and accurate scanning |
| Printer | Receipt Printer | 80mm thermal printer with auto-cutter | Epson or equivalent |
| Power | Power Supply | Industrial AC input 100–240V, optional UPS | Optional UPS for power backup |
| Enclosure | Cabinet | Durable steel, waterproof, anti-rust, anti-vandal | IP55/IP65 rating optional |
| Interfaces | I/O Ports | Multiple USB, RS-232, Ethernet, audio, power | Expandable ports available |
| OS | Operating System | Windows 7 / Windows 10 / Linux | License optional |
Highlight: Outdoor Payment Kiosk, 21.5 Inch Outdoor Payment Kiosk, Outdoor Payment Kiosk With NFC payment, QR Code Payments Outdoor Payment Kiosk, Outdoor Payment Kiosk for Parking Lot, Outdoor Parking Payment Kiosk |
Hardware and Software of Outdoor Payment Kiosk
Hardware21.5-inch outdoor-grade TFT LCD touch screen Industrial PC with Intel CPU (i3/i5/i7) NFC card reader and QR code scanner 80mm thermal printer with auto-cutter Waterproof and anti-vandal metal cabinet Optional UPS power backup and ventilation system
| SoftwareWindows 7/10 or Linux operating system Payment software integration (credit/debit/NFC/QR) Parking management system compatible Remote device monitoring and diagnostics Multi-language user interface support
|
 |
Applications of outdoor payment kiosk
Outdoor parking lots and garages Shopping mall parking entrances Airport and train station parking areas Government and municipal parking facilities Event venue temporary parking systems
|
What are advantages of 21.5 inch touchscreen, NFC And QR Code Payments for a Outdoor Payment Kiosk
The 21.5-inch touchscreen, combined with NFC and QR code payment capabilities, offers significant advantages for an outdoor payment kiosk. The 21.5-inch screen provides an ideal balance between compact design and user visibility, ensuring clear display and smooth interaction even in direct sunlight. Its size supports intuitive navigation without overwhelming users. NFC enables fast, contactless card or mobile payments, while QR code scanning supports digital wallets and app-based transactions, enhancing flexibility and hygiene. These technologies together reduce wait times, support multi-language interfaces, and meet global user preferences. Ideal for outdoor use, this configuration boosts efficiency, user satisfaction, and transaction speed in harsh environments.
Customizations of outdoor payment kiosk
Screen size and brightness level Custom paint color and logo printing Payment modules: add coin acceptors, cash, or EMV terminals Multi-language UI and branded software interface Additional components: camera, speakers, barcode scanner
|
|
Installation and Operation Guide to Outdoor Payment Kiosk
| Step | Description | Tools Needed | Notes |
|---|
| 1 | Site Assessment | Measuring tools | Ensure power/network access; confirm space size. |
| 2 | Mounting and Securing | Drill, bolts, level | Secure kiosk to ground or platform. |
| 3 | Power Connection | Electrical tools | Connect to 110V/220V AC; use voltage stabilizer. |
| 4 | Network Setup | Ethernet cable or SIM card | Support for LAN/Wi-Fi/4G depending on config. |
| 5 | Software Configuration | USB keyboard, monitor (optional) | Load OS, UI, payment SDK/API, language settings. |
| 6 | Payment Module Testing | Test cards, phones with NFC/QR | Validate NFC, QR scanning, printer functions. |
| 7 | End-User Operation Training | User manual | Train staff on basic use, maintenance, and support. |
| 8 | Routine Maintenance (monthly recommended) | Cleaning tools | Screen cleaning, paper refill, system update. |
Price Range of Outdoor Payment Kiosk
| Configuration Type | Unit Price Range (USD) | Notes |
|---|
| Basic Model (No NFC/QR, Indoor) | $900 – $1,300 | Entry-level, no weatherproofing or contactless features. |
| Standard Outdoor Model (with QR Only) | $1,400 – $1,800 | Includes waterproof housing, thermal printer. |
| Full Version (NFC + QR + 21.5" screen) | $1,900 – $2,500 | Recommended for parking lots, includes full tech stack. |
| Custom Branding/Software Integration | Add $150 – $500 | Based on specific branding, software, hardware upgrades. |
Purchasing Guide to Outdoor Payment Kiosk
| Intended Use | Define use scenario: parking lot, transit hub, retail, etc. |
| Screen Size | 21.5" is ideal for clear visuals and touch precision outdoors. |
| Weather Resistance | Choose waterproof and anti-UV housing for outdoor durability. |
| Payment Modules | Ensure support for NFC (tap), QR scanning, and bank card readers. |
| Integration Needs | Verify API compatibility with your backend system. |
| Volume and Shipping | Bulk orders reduce per-unit cost; ask for packaging and freight details. |
| After-Sales Support | Choose manufacturers with remote support, on-site repair or warranty plans. |
| Manufacturer Selection | Prefer factory-direct suppliers like LKS to ensure better pricing and OEM/ODM options. |
FAQS about outdoor payment kiosk
1. What are the advantages of choosing a 21.5 inch touchscreen for an outdoor payment kiosk?
The 21.5-inch touchscreen offers a balance between usability and size, providing clear visibility in sunlight, responsive interaction, and enough space for a user-friendly UI. It's ideal for outdoor settings where space is limited but clarity and durability are essential.
2. How does the NFC and QR code payment system benefit outdoor transactions?
NFC and QR code payment options enable fast, secure, and contactless transactions, reducing queue time and improving hygiene. These technologies support mobile wallets and modern payment platforms, making the kiosk compatible with global customer habits and expectations.
3. Is the 21.5” outdoor payment kiosk weatherproof and suitable for long-term outdoor use?
Yes. The kiosk features an industrial-grade waterproof and anti-vandal metal enclosure with optional IP55/IP65 ratings. It's built for long-term use in outdoor environments, resistant to rain, dust, temperature fluctuations, and UV exposure.
4. Can this kiosk integrate with existing parking or ticketing systems?
Absolutely. The kiosk supports Windows or Linux OS and can integrate with most third-party parking or ticketing software via API. It can also be customized to support barcode readers, cameras, or license plate recognition for seamless system integration.
5. What are the power requirements and backup options for outdoor installation?
The kiosk runs on a standard AC input (100–240V) and offers optional UPS backup to prevent service disruption during power outages. This ensures operational continuity, especially in critical applications like parking and public transport.
6. Can I customize the payment module and hardware configuration before purchase?
Yes. The kiosk is fully customizable. You can choose different CPU levels, printer models, screen brightness, payment modules (e.g. add EMV, cash acceptor), and exterior color/logo. These options ensure the unit aligns with your branding and technical needs.
