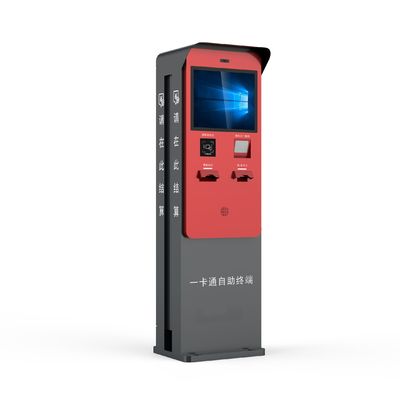

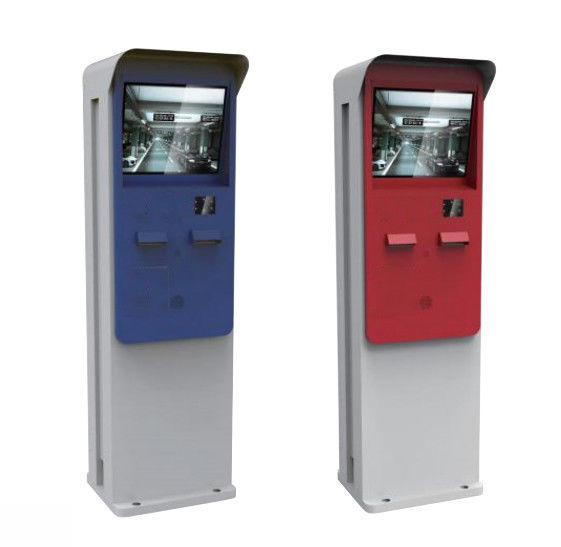

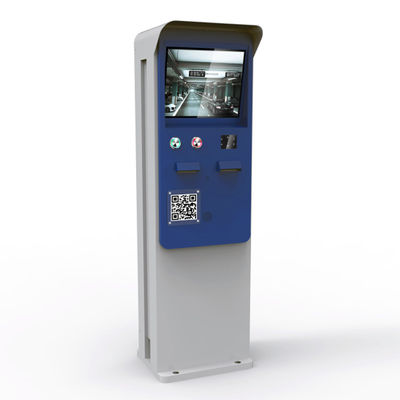

This Outdoor Interactive Kiosk features a 19-inch waterproof touch screen, integrated card reader, and thermal printer. Designed for rugged outdoor use, it offers 24/7 self-service for ticketing, information display, and secure payments. Ideal for public venues, it enhances customer engagement, reduces queue times, and operates reliably in all weather conditions.
The 19-inch industrial-grade touch screen offers a highly responsive and intuitive user interface, ensuring smooth interaction even under sunlight or with gloves. It enhances customer experience in all outdoor applications.
The built-in card reader supports magnetic stripe, IC, and contactless cards, enabling secure and fast payments. It reduces manual errors and provides a seamless self-service payment process.
The high-speed thermal printer efficiently prints receipts, tickets, or confirmations, ideal for parking, cinemas, transport, and self-check-in scenarios. Its easy paper roll replacement ensures minimal downtime in busy locations.
| Product Name | Outdoor Interactive Kiosk | Model Number | LKS8341 |
| Screen Size | 19 Inch TFT LCD | Custom Screen Size | 8–65 Inch Optional |
| Touch Technology | Infrared / Capacitive / SAW | Resolution | Up to 1280×1024 |
| Brightness | 250 cd/m² | Contrast Ratio | 1000:1 |
| Cabinet Material | 1.5–2.5mm Cold-Roll Steel | Surface Finish | Powder Coated, Optional Branding |
| Installation Type | Freestanding or Wall Mounted | Environment Rating | Waterproof, Dustproof, Anti-rust |
| Operating System | Windows 7 / 10 / Linux | Processor Options | Intel E5700 / G2020 / i3 / i5 / i7 |
| RAM / Storage | 2–8GB RAM / 500GB HDD | Optional SSD | 128GB–512GB |
| Card Reader | Magstripe / RFID / IC Card | Printer | Thermal Receipt Printer |
| Payment Options | Cash Acceptor / Coin Acceptor | Barcode Scanner | 1D/2D Scanner Optional |
| Connectivity | Ethernet / WiFi / 4G Optional | Power Supply | 110–240V AC / UPS Optional |
| Certifications | CE, FCC | Warranty | 1 Year |
| MOQ | 10 Units | Supply Capacity | 1000–2000 Units/Month |
| Delivery Time | 4–6 Weeks | Price | USD 5000+ per Unit |
Highlight: Outdoor Interactive Kiosk, 19 Inch Outdoor Interactive Kiosk, Waterproof Outdoor Interactive Kiosk, Touch Screen Outdoor Interactive Kiosk, Outdoor Interactive Kiosk with Card Reader, Outdoor Interactive Kiosk with Printer |
Software and Hardware of Outdoor Interactive Kiosk
SoftwareSelf-service kiosk software suite (custom UI) Secure payment software (EMV-compliant) Queue management and ticketing software Remote monitoring and diagnostics Content management system (CMS) API integration with third-party platforms
Click Detailes of interactive kiosk software to learn more | HardwareHigh-brightness industrial TFT LCD display (sunlight readable optional) Industrial-grade touch screen (IR / SAW / capacitive) Integrated thermal printer and barcode scanner Multi-payment terminal: card, cash, QR, NFC Steel enclosure with anti-vandal lock system Fanless PC with industrial mainboard
|
Features of outdoor interactive kiosk
Designed for outdoor environments (IP rated) Weatherproof and dust-resistant cabinet Easy maintenance with front access Customizable paint and logo Modular components for easy upgrades Optional camera, A4 printer, or speakers
|
|
Applications and customizations of outdoor interactive kiosk
ApplicationsOutdoor ticketing and check-in kiosks (cinema, transit) Government services and utility bill payment Outdoor wayfinding and information kiosks Self-service registration in hospitals and clinics Public transportation terminals Banking service points
| Customization OptionsCustom display size: 8 to 65 inches Branding: logo printing, color, and paint finish Component selection: payment, scanner, printer, etc. OS and software customization Installation structure: freestanding, wall mount, pole mount Remote monitoring dashboard and SDK
|
Advantages of outdoor interactive kiosk
All-Weather Outdoor Durability
Designed with waterproof, dustproof, and anti-glare features, this kiosk performs reliably in rain, snow, heat, and sunlight with IP-rated protection.
Responsive 19-Inch Touchscreen
Integrated Multi-Function System
Equipped with a card reader and thermal printer, the kiosk offers a complete self-service solution for ticketing, payments, and information display.
Highly Customizable
Supports various screen sizes, system platforms (Windows/Linux/Android), payment modules, branding colors, and mounting options (floor-standing or wall-mounted).
24/7 Service with Reduced Labor Costs
Remote Management Capabilities
Enables centralized control, real-time monitoring, remote updates, and error alerts for large-scale deployments.
User-Friendly Interface
User Operation for outdoor interactive kiosk step by steps
Step 1: Power On
Connect to power. The kiosk will automatically boot to the main screen. Ensure network connectivity (Ethernet, WiFi, or 4G) is established.
Step 2: Select Service
The user taps the touch screen to choose a service: ticket booking, information inquiry, bill payment, etc.
Step 3: Input Data / Verify Identity
Depending on the application, users may scan a QR code, swipe a card, insert an ID, or input their phone number or reservation code.
Step 4: Make a Payment
Payments can be made using magnetic stripe cards, IC/chip cards, contactless (NFC), QR code payment, or even coins/banknotes (if enabled).
Step 5: Receive Printed Ticket / Receipt
Upon transaction completion, the built-in thermal printer issues a receipt, voucher, or ticket. Low paper or jams trigger system alerts.
Step 6: Finish and Reset
After use, the kiosk automatically clears the session data and returns to the main screen for the next user.
Tips:
- Clean the touch screen regularly.
| - Monitor printer status and paper roll remotely.
| - For troubleshooting, use remote diagnostics or authorized service.
|
Price Range and Key Cost Factors of Outdoor Interactive Kiosk
Note: The following prices are for reference only. For a customized quote tailored to your specific project, please contact the LKS sales team directly.
| Component/Specification | Option Range | Impact on Price | Remarks |
|---|
| Screen Size | 17"–65" | High (larger size, higher cost) | Custom sizes increase LCD and housing cost |
| Touch Technology | IR, SAW, Capacitive | Medium to High | Capacitive is most expensive and responsive |
| PC System | Dual-Core to i7 / RAM 2–8GB | Medium | Higher configurations for complex applications |
| Peripherals | Printer, Scanner, Card Reader, etc. | High | Each add-on increases overall cost |
| Cabinet Material | 1.5mm–2.5mm Cold-rolled Steel | Medium | Thicker and anti-vandal coatings cost more |
| Outdoor Protection | Waterproofing, Anti-dust, Anti-vandal | High | Required for all outdoor installations |
| Production Volume | 10–500+ Units | High (volume discounts apply) | Higher quantity lowers per-unit cost |
| Software Customization | Basic UI to Full Integration | Medium to High | Varies by software depth and integration needs |
| Shipping & Packaging | Wooden Case, Film Wrap, Foam | Medium | International shipping adds to the total cost |
Buying Guide for Outdoor Interactive Kiosk
Define Usage Scenario: Clarify if the kiosk will be used in places like a station, hospital, bank, or mall. This determines hardware needs.
Choose the Screen Size & Touch Type: Based on user distance, lighting conditions, and interaction level.
Select Required Peripherals: Such as printer, card reader, coin acceptor, barcode scanner, etc.
Confirm Environmental Protection Level: Ensure IP65-level waterproofing, anti-vandal casing, and sufficient cooling.
Customize Branding: Define logo placement, color, and decals to align with your brand.
Request Technical Support Plan: Inquire about remote support, system upgrades, and long-term maintenance.
Consult LKS Sales Team: Share your specifications and receive a tailored proposal and quotation.
FAQS about outdoor interactive kiosk
Is this kiosk suitable for use in rainy or snowy outdoor environments?
Yes. The kiosk is designed with a waterproof, weather-resistant enclosure (IP-rated), anti-rust finish, and sunlight-readable screen, ensuring stable performance in rain, snow, dust, or direct sunlight.
Can the 19-inch screen be upgraded to a larger size or customized for specific applications?
Absolutely. While the default size is 19 inches, we offer optional customization up to 65 inches depending on your use case—whether for advertising, wayfinding, or detailed forms.
How secure is the card reader for payment transactions?
The card reader supports encrypted, EMV-compliant transactions. Optional upgrades include NFC and biometric authentication, ensuring customer data is protected during every transaction.
What happens if the thermal printer runs out of paper or jams during operation?
The system can be set to display real-time error messages. Our printers feature easy front-access panels for quick roll replacement and jam clearing, minimizing disruption to service.
Can the kiosk be connected to our backend software or CRM system?
Yes. We provide APIs and SDKs for seamless integration with your existing platforms, including payment gateways, CRM systems, or ticketing software. Remote monitoring and updates are also supported.
How do we maintain the kiosk regularly to ensure long-term performance?
Routine maintenance includes cleaning the screen, checking for printer paper, and inspecting internal hardware via the front-access panel. Remote diagnostics also help identify technical issues early.
